Ori-C

Ori-C

200 Nm³/h for example

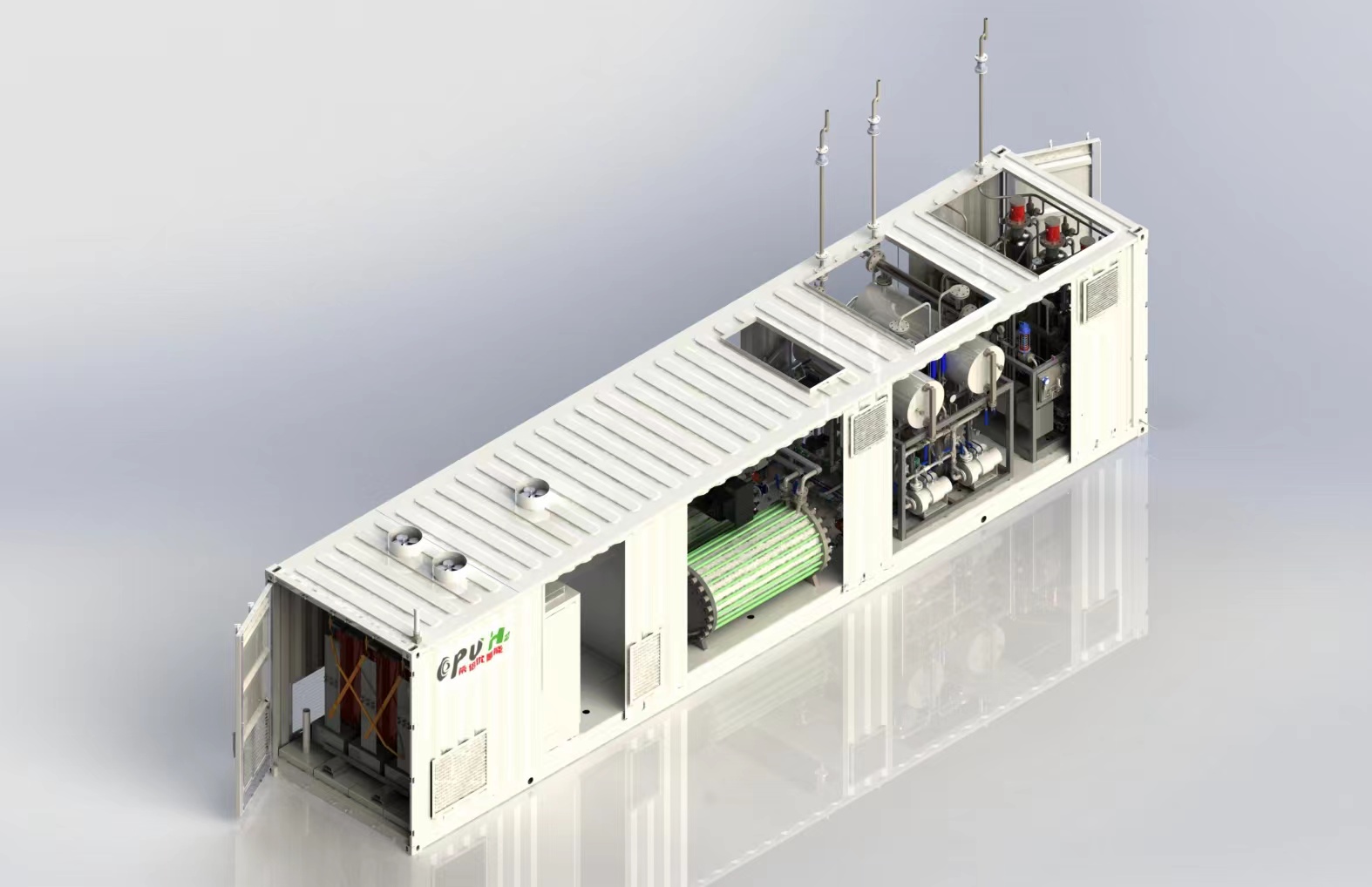

Advantages: The Ori-C series hydrogen production system comprises a comprehensive hydrogen production process, including a transformer, rectifier, control cabinet, two 100Nm³/h resin-framed electrolyzers, a gas-liquid separation system and a purification unit, all contained within a 40-feet container. Of particular note is the fact that the two 100Nm³/h resin-framed electrolyzers, which represent the core of the hydrogen production process, are individually controlled. This increases the flexibility of the system and its ability to adjust to a wide range of loads. This configuration permits the system to adapt the operational parameters of the electrolyzers in accordance with the varying requirements of hydrogen production, thereby optimising the utilisation of energy. In addition to technological innovations, the Ori-C series of hydrogen production systems also considers the convenience and economy of practical applications. The system permits outdoor installation without the necessity for complex infrastructure, thereby optimising the footprint and reducing project costs. Concurrently, its compact containerized design facilitates transportation and deployment, providing a robust guarantee for the expeditious rollout of distributed renewable energy hydrogen generation projects.

Application areas: The system is suitable for use in distributed renewable energy hydrogen production, outdoor on-line hydrogen production (hydrogen refuelling station), and other similar applications.

• Flexible control:

One gas-liquid separation system for two electrolyzers.

• Simplified installation

40ft container design for easy transport
Can be installed in outdoor/indoor environments

• Purification:

Hydrogen purity up to 99.999 %
System power consumption ≤ 56kWh/kg

• Flexible Load:

Demonstrates a high degree of flexibility over a power range of 20% to 100%.
